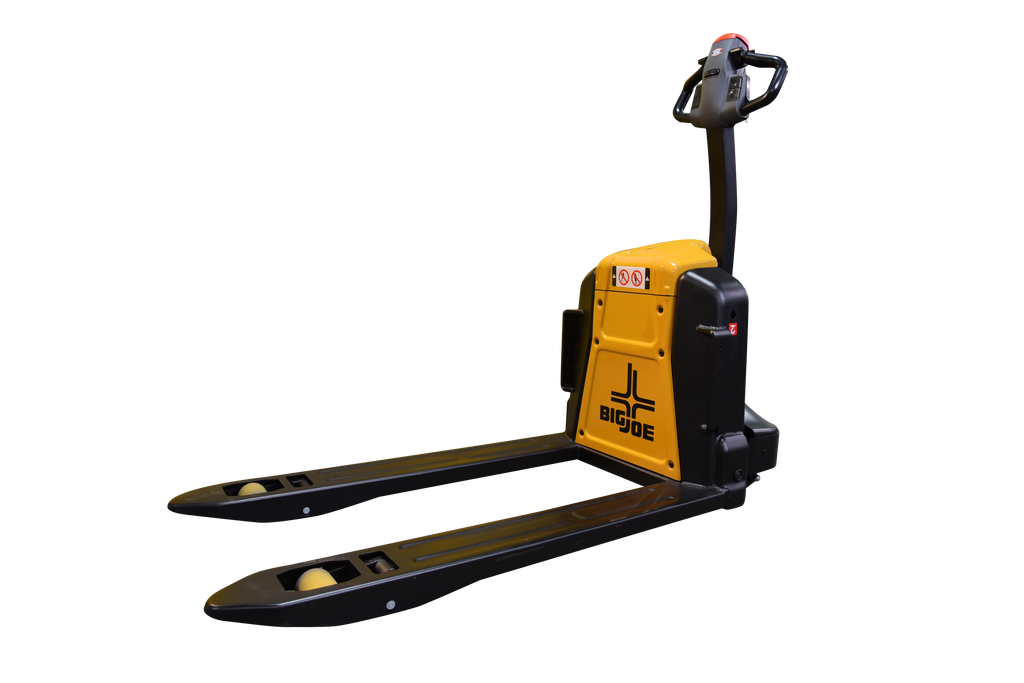

LPT40
4,000 lb. Capacity Lithium-Ion Pallet Truck
The revolutionary LPT40 Lithium ion powered pallet truck continues the Big Joe philosophy of matching the right tool to a job for maximum productivity and value. Designed from the ground up for advanced Li-ion battery technology, the LPT40 features the smallest power head in the industry, just 17” long, making it an excellent choice for lift gate delivery fleets, C store deliveries, and heavy duty warehouse and manufacturing applications. With a swappable lithium battery, 48v power and a compact design the revolutionary Big Joe LPT40 simply offers a better way to get the job done.
- Features
- Specifications
The LPT40 Features:
- Up to 3 hours of run-time per charge
- Ergonomic handle with reversing switch, horn, and dual “butterfly”
- Thumb controls are intuitive and allow for safe, accurate operation
- The unique Easy Exchange battery system functions like common cordless hand tools
- Strong 48V permanent magnet drive motor
- Battery discharge indicator
- Key switch to limit access to approved personnel
The LPT40 Specifications:
• Vehicle Type | Lithium Pallet Truck |
• Capacity | 4,000lbs. @ 24” load center |
• Power | 48 volt electric with transistor controller |
• Max Lift Height | 7.75” |
• Collapsed Height | 3.2" |
• Fork Dimensions | 27" W x 48" L, 22" W x 36"/48" L |
• Vehicle Dimensions | See specification sheet |
• Turning Radius | See specification sheet |
• Travel Speed | See specification sheet |
• Battery Compartment | Easy exchange lithium ion battery |
• Battery Capacity | 48-volt 30AH rechargeable |
• Charger | 110V plug-in internal |
