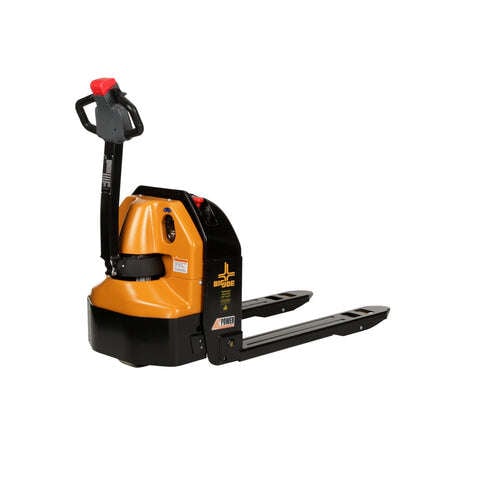

4,000 lb. Capacity Electric Delivery Pallet Truck

Our 4,000lb capacity electric pallet truck has been developed from the ground up to meet the unique demands of local delivery applications. The D40 is thus very compact in design yet it has the power to perform from warehouse to store, both inside or outdoors.

  • Features
  • Specifications
  • Videos
  • Case Studies

The D40 Features:

  • Up to 4 hours of run-time per charge

  • High-efficiency brushless AC drive motor

  • 85AH premium AGM batteries and internal 120v charger.

  • Ergonomic handle with tiller based crawl speed.

  • Low gross weight

  • Battery discharge indicator

  • Key switch

  • Optional load backrest with tool tray and load restraint belt available.

The D40 Specifications:

• Vehicle Type
Motorized pallet truck
• Capacity
4,000lbs. @ 24” load center
• Power
24 volt AC electric with transistor control
• Max Lift Height
7.5”
• Collapsed Height
3.25"
• Fork Dimensions
27” W x 45” L standard
• Vehicle Dimensions
See specification sheet
• Turning Radius
See specification sheet
• Travel Speed
See specification sheet
• Battery Compartment
Rechargeable internal battery pack
• Battery Capacity
85AH
• Charger
Internal 110V included as standard

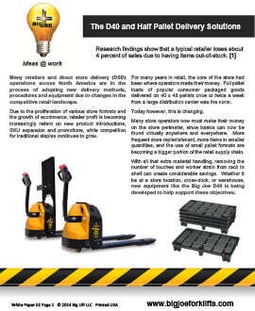

The_D40_and_Half_Pallet_Delivery_Solutions_052214-1
