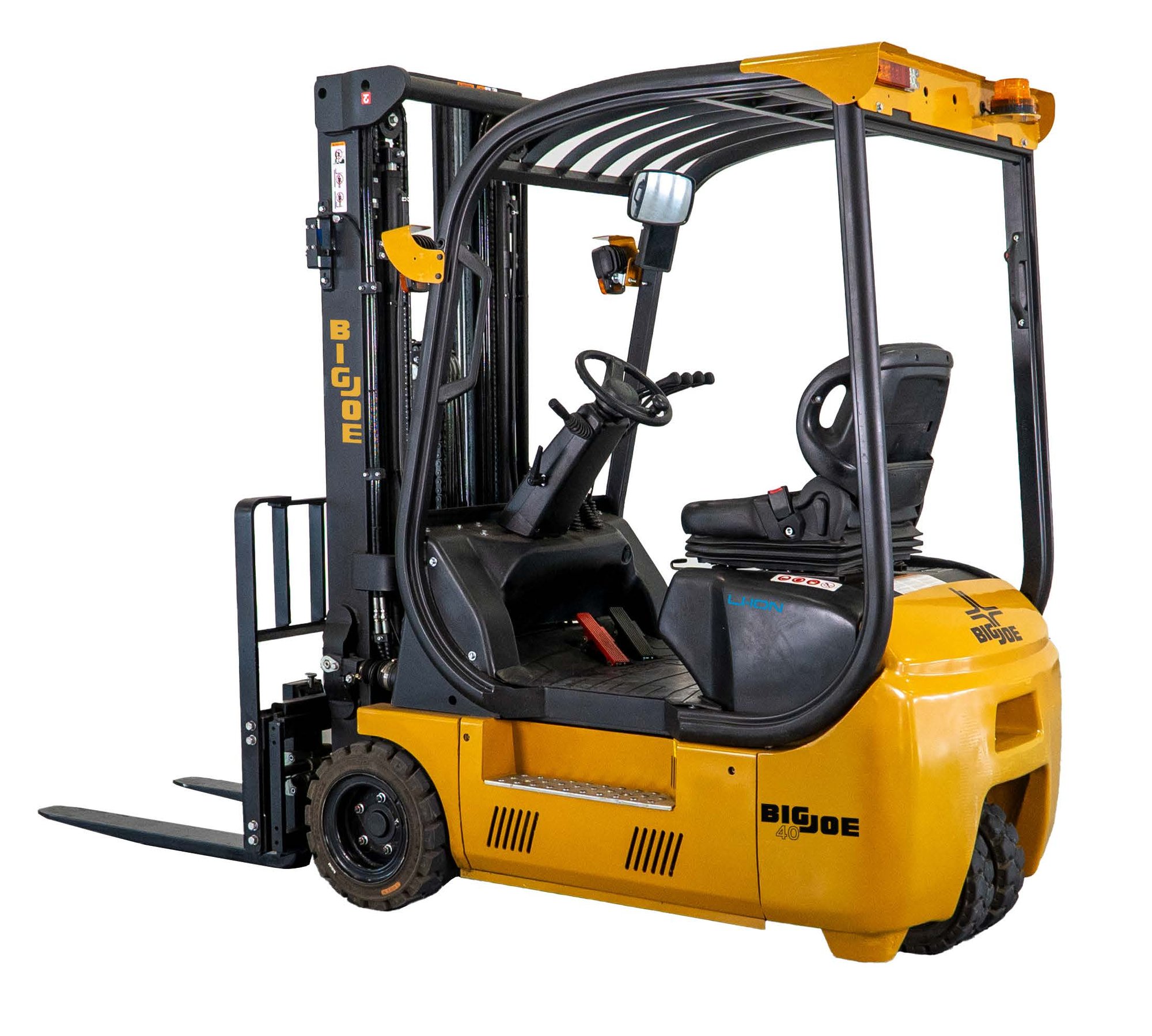

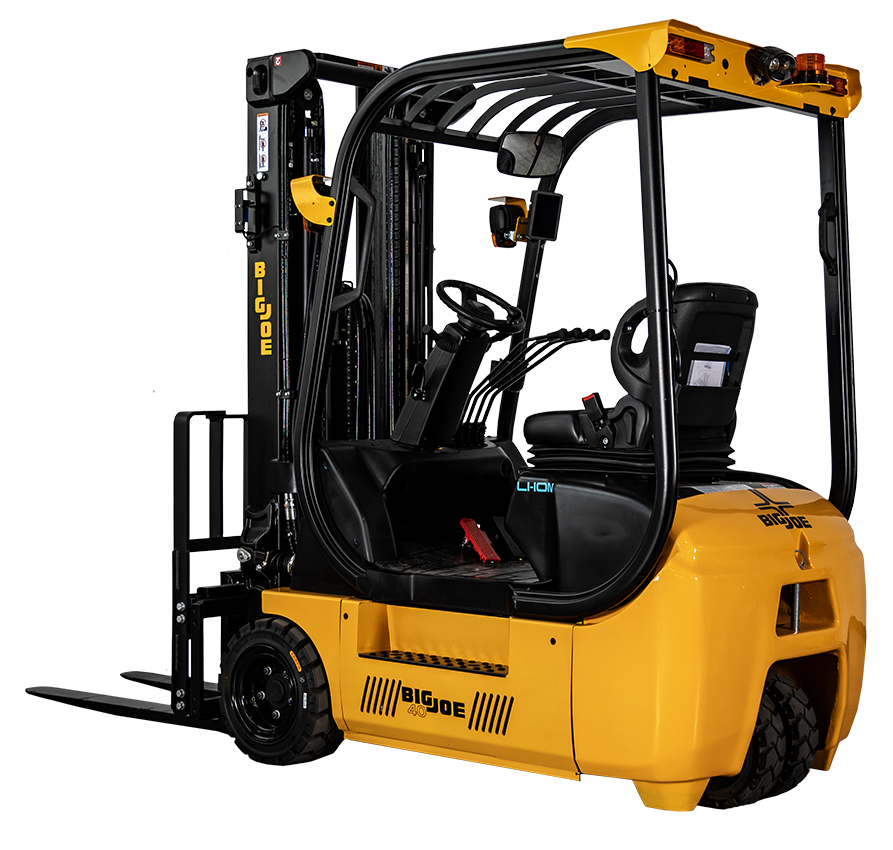

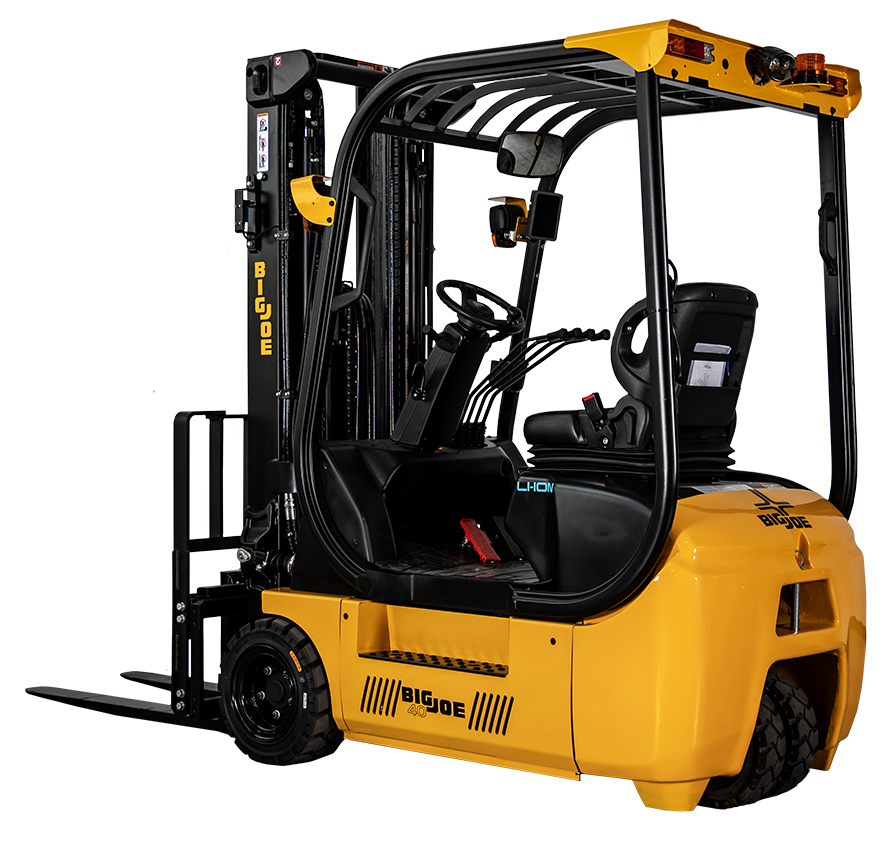

LVE40

4,000 lb. Capacity Integrated Lithium-Ion Three-Wheel Pneumatic Electric Forklift

Integrated lithium-ion provides simplicity and reduces cost.

Many businesses know that it takes lithium-ion to get the most efficiency, uptime and cost effectiveness out of an electric forklift. And now customers are learning that it takes an integrated power source for simplicity of operation and optimal ergonomics. The Big Joe LVE40 delivers all of the above—an optimal package that supports the operator while driving down cost of operations. Big Joe is one of the few suppliers to develop and produce both forklift and battery, so customers have one expert supplier to help from end to end.

  • Features
  • Specifications
  • Videos

Product Highlights

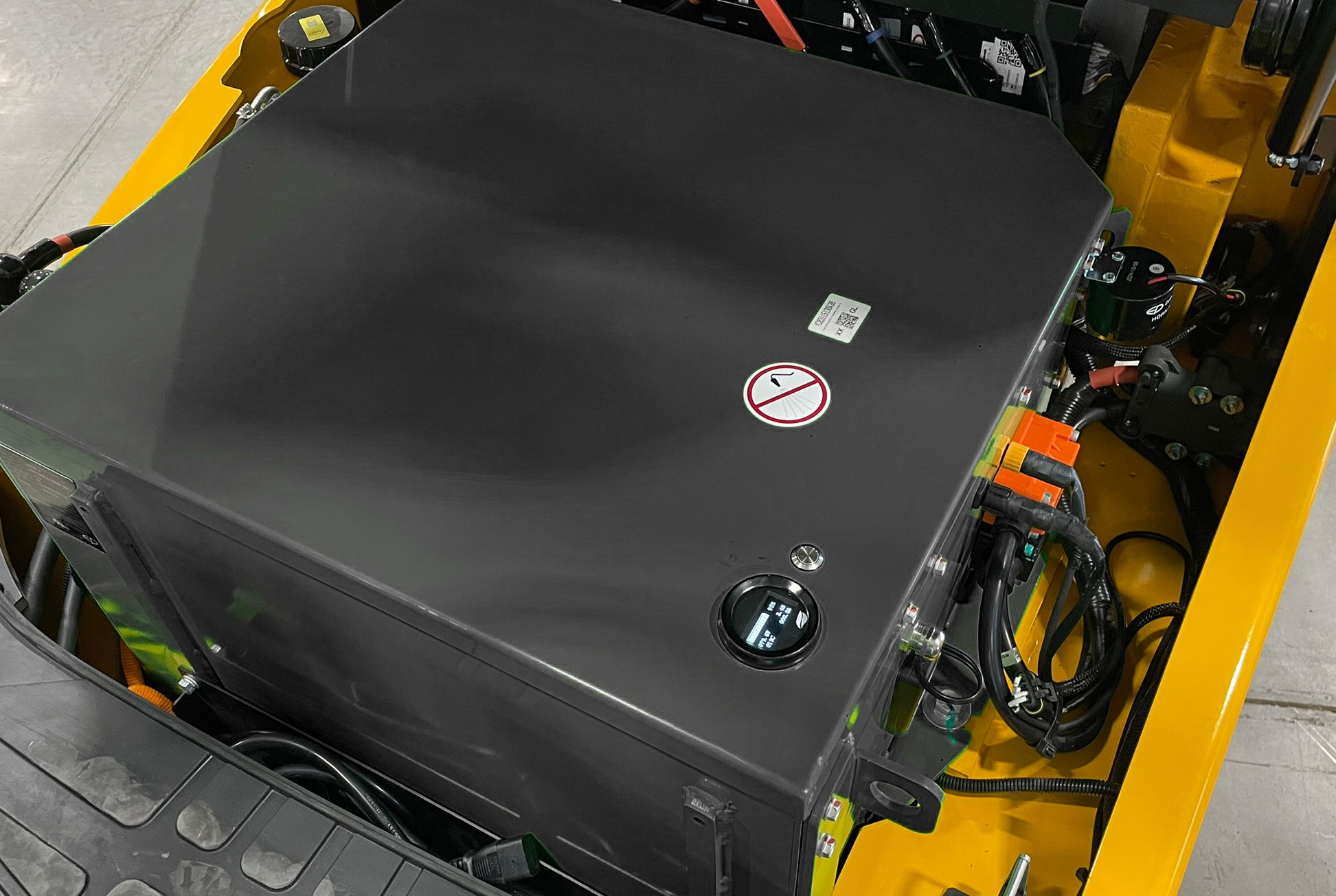

  • UL-Recognized Integrated Lithium-ion 17.3kWh Battery
  • Telemetry Monitoring System with Over-the-Air Updating

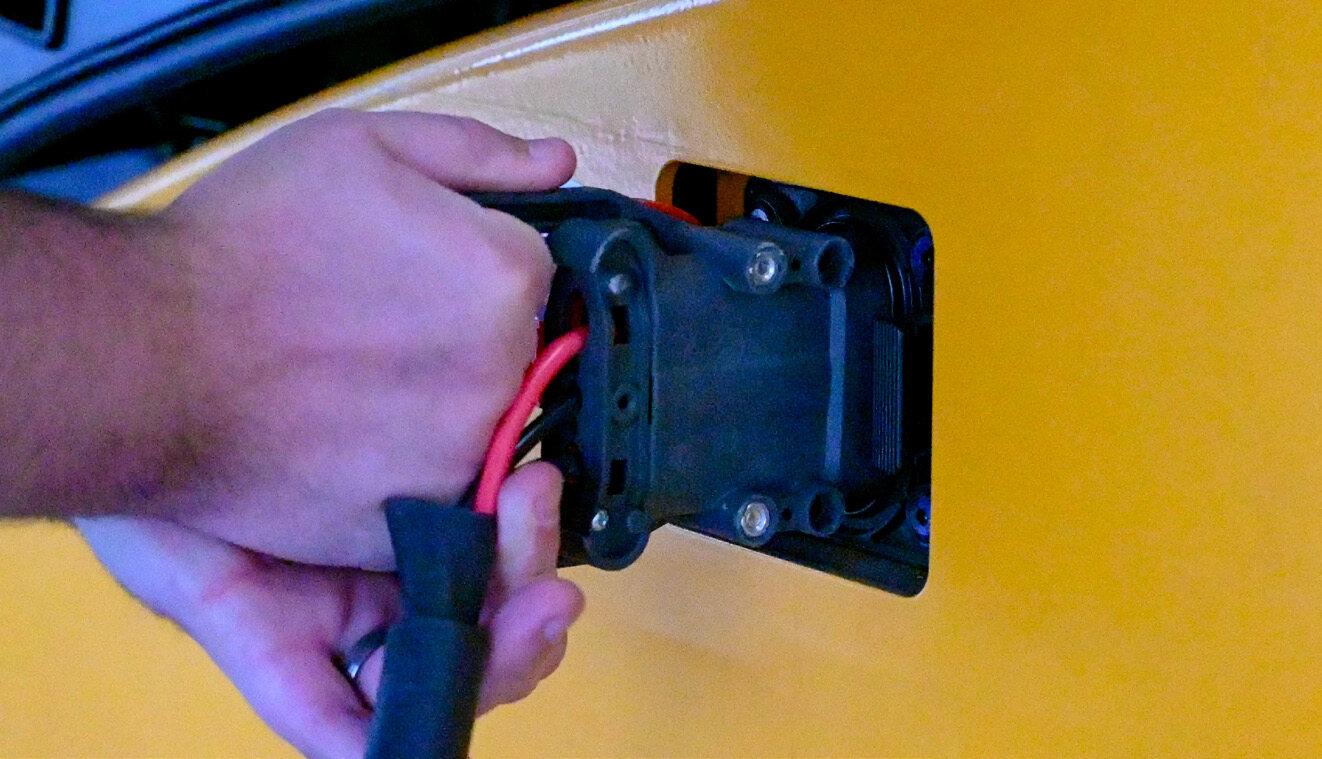

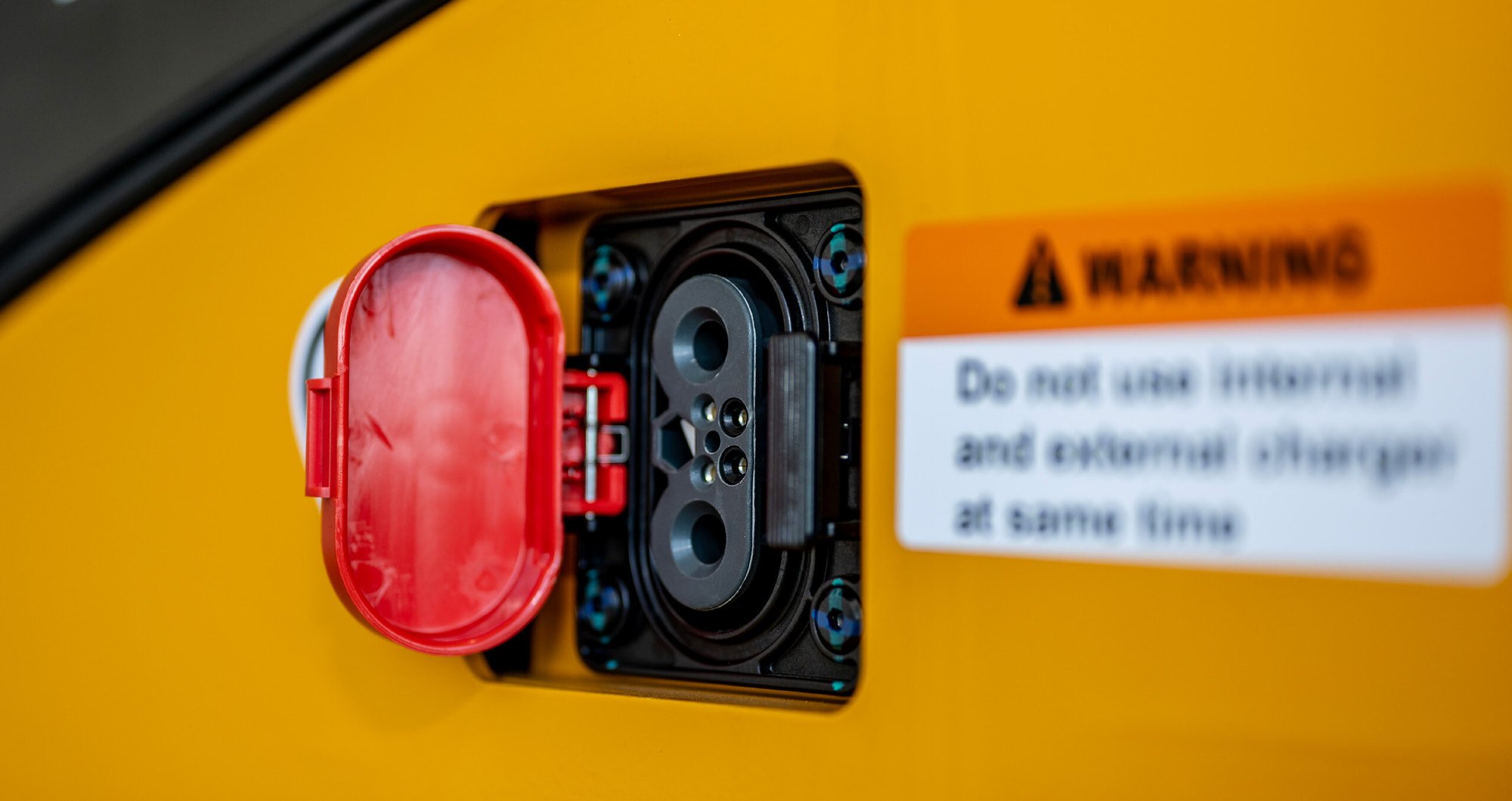

  • Onboard 120/240VAC Battery Charger with Power Cords
  • Bluetooth-Enabled LCD Display for Diagnostics and Tuning
  • Dual AC Drive Motors with Zero Turn Radius
  • Fully-Electric and Maintenance-Free Service Brakes
  • Electromagnetic Parking Brake
  • Large Step and Wide-Open Operator Space

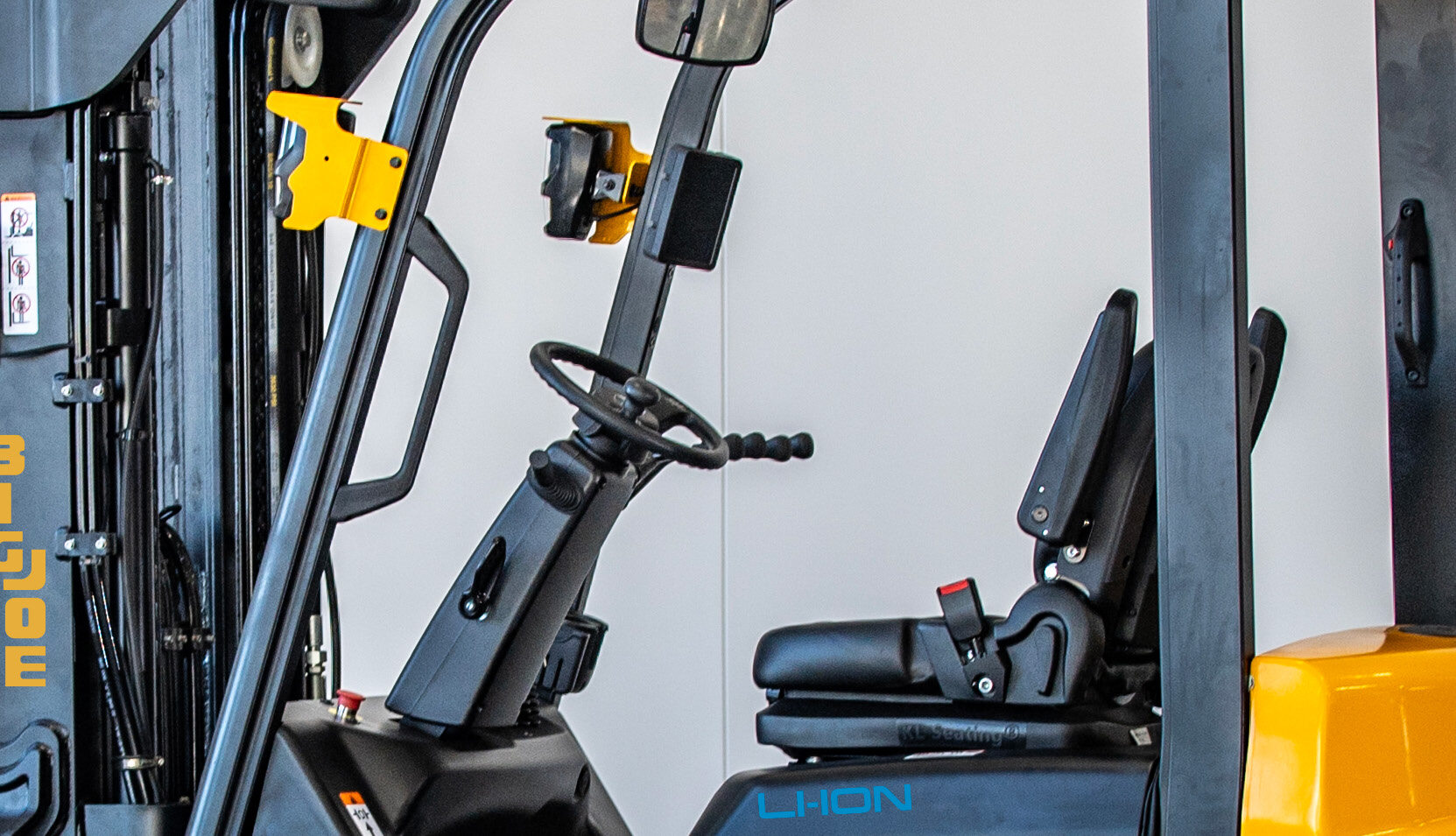

  • Low Dash for Excellent Visibility
Capacity at 24in. Load Center 4,000 lbs.
Battery Size 17.3kWh
Overhead Guard Height (in.) 84.3
Overall Width (in.) 45.3
Right Angle Stack (in.) 130.8
Max Travel Speed (mph) 9.9
Max Lift Speed (ft/min.) 84.6

FOOTNOTE: Refer to specifications sheet for most up-to-date information.  Lift trucks specifications are subject to change without notice.  Any specifications critical to the intended application of the forklift should be reviewed with your Big Joe dealer.
