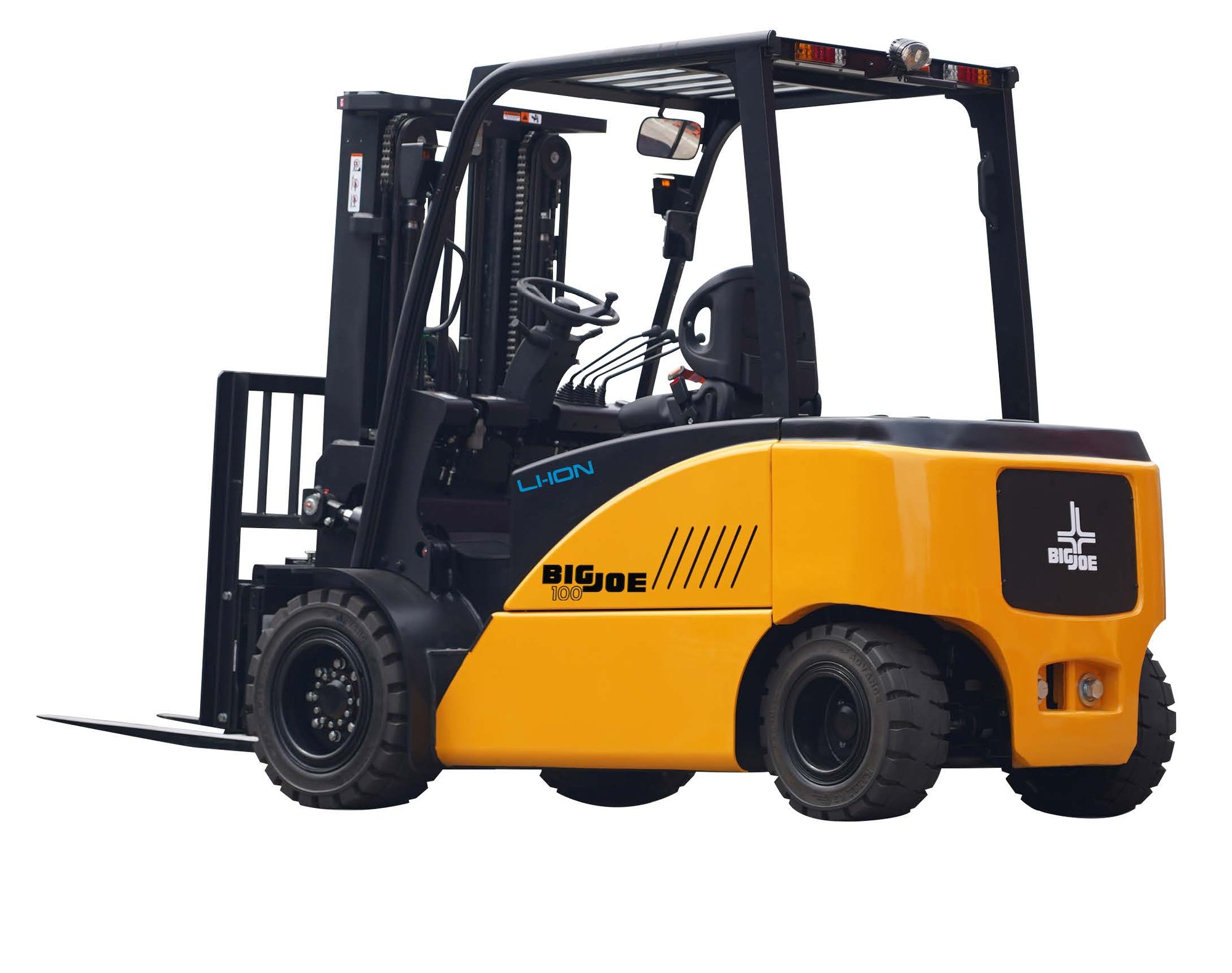

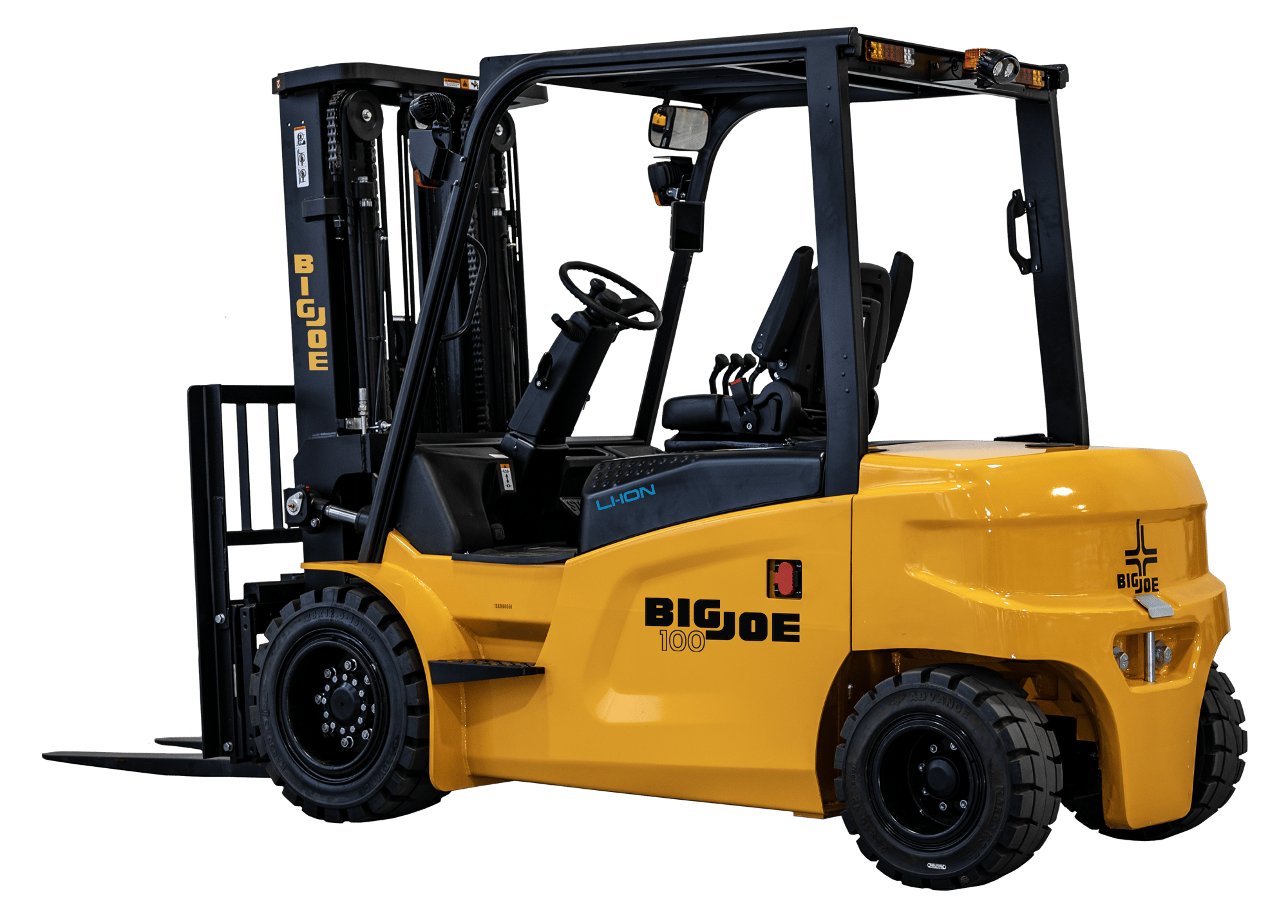

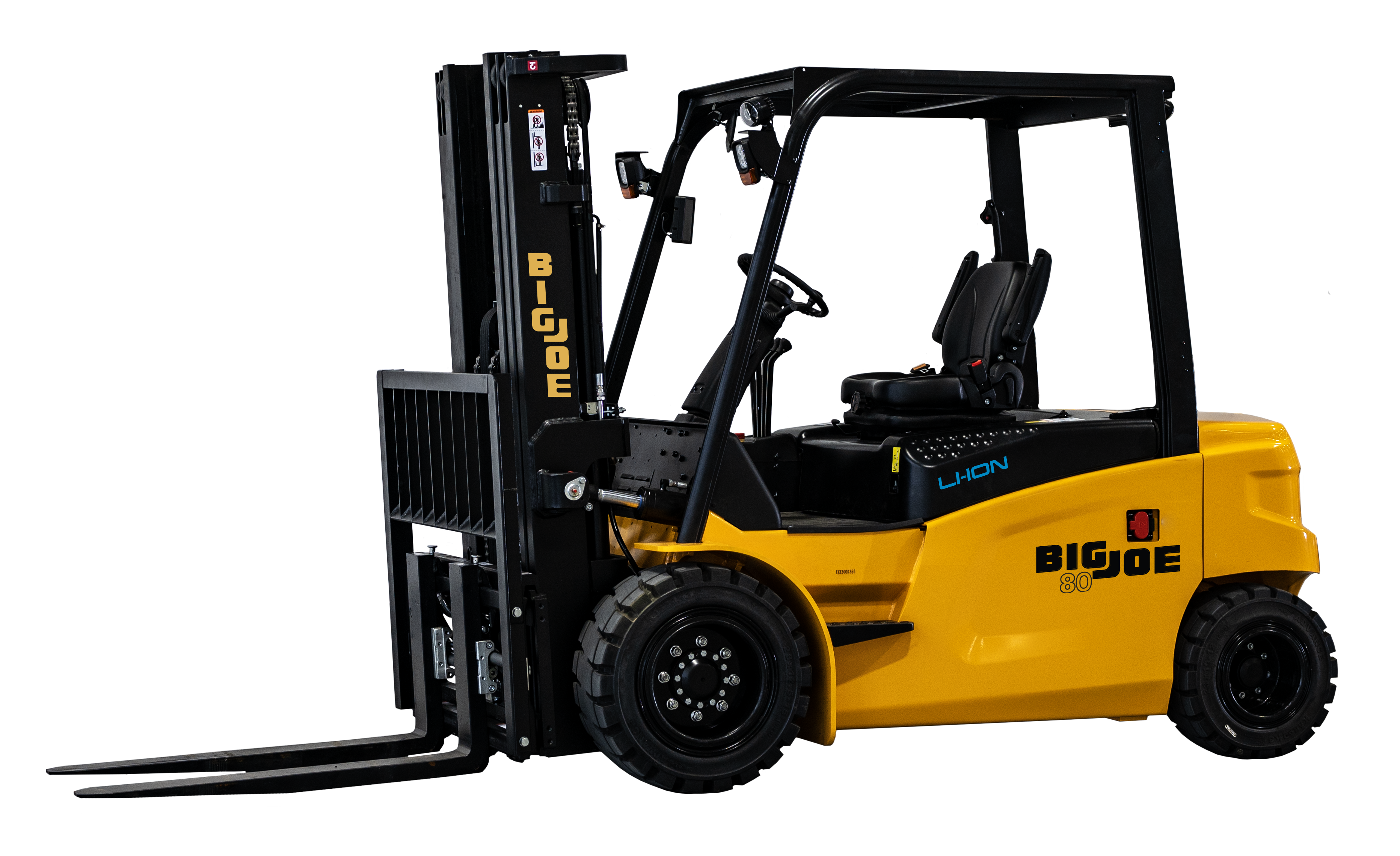

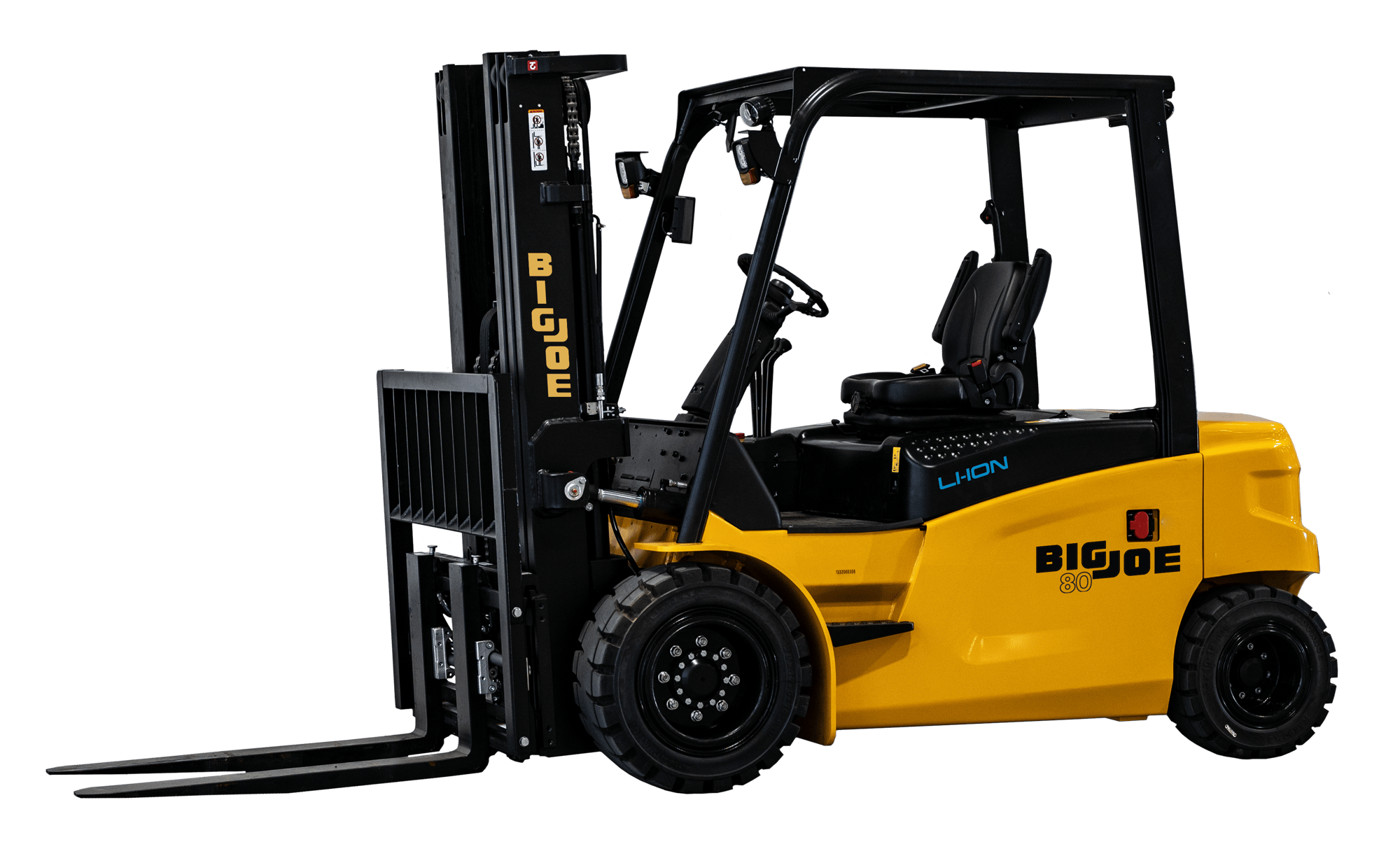

LPE80-100

8,000-10,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

Big returns with integrated lithium-ion.

Ready to stop spending money on fuel and expensive engine maintenance? The LPE80-100 series is equipped with Big Joe’s purpose-built, integrated Lithium-ion battery, so operation is smooth, quiet and cost-effective. A single, brushless AC drive motor provides precise control. The long wheelbase and wide, pneumatic-shaped solid tires contribute to a stable ride. The LPE80-100 series is the ideal electric solution for light to moderate duty applications that need to move those larger loads. With standard onboard charging and over-the-air telematics, going electric with Big Joe is an easy choice.

Pricing Spec Sheet
  • Features
  • Specifications

Product Highlights

  • Designed to Meet or Exceed Performance of Internal Combustion Forklifts
  • UL-Recognized Integrated Lithium-ion Maintenance-free Battery
  • Available with 36.8kWh and 44.8kWh Batteries
  • Onboard 120/240VAC Battery Charger with Power Cords
  • Bluetooth-Enabled LCD Display for Diagnostics and Tuning
  • 80V AC Drive and Hydraulic Pump Motors
  • Foot-Activated Parking Brake Lever
  • Low Dash for Excellent Visibility
  LPE80 LPE100
Capacity at 24in. Load Center 8,000 lbs. 10,000 lbs.
Battery Size 44.8kWh 44.8kWh
Overhead Guard Height (in.) 92.6 92.6
Overall Width (in.) 61.0 61.0
Right Angle Stack (in.) 129.3 130.6
Max Travel Speed (mph) 9.0 9.0
Max Lift Speed (ft/min.) 88.5 88.5



FOOTNOTE: Refer to specifications sheet for most up-to-date information.  Lift trucks specifications are subject to change without notice.  Any specifications critical to the intended application of the forklift should be reviewed with your Big Joe dealer.

Big Joe Forklifts LPE80-100 3

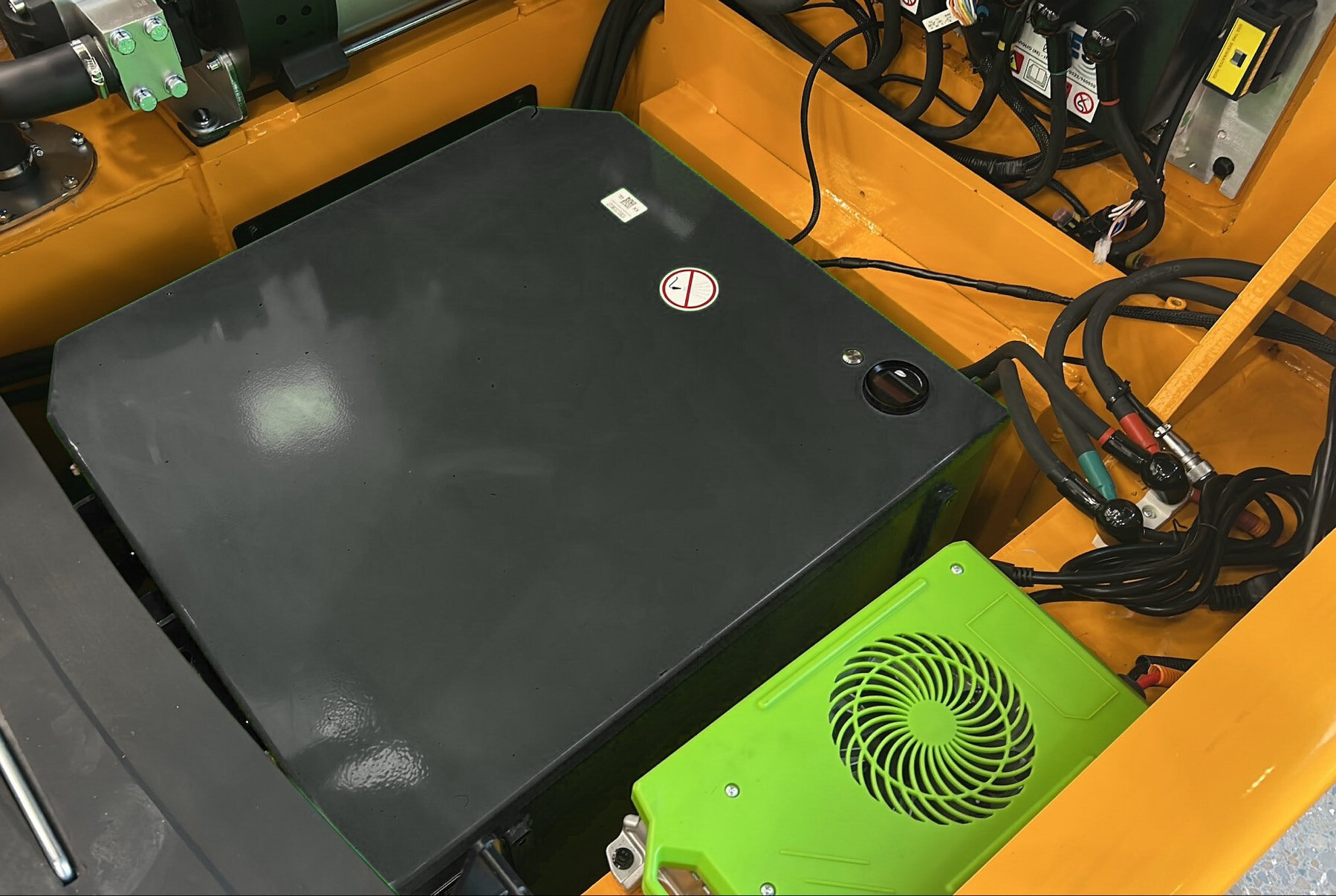

Integrated Lithium: Power That Means Business
The UL-recognized Lithium-ion battery is designed and manufactured by Big Joe, in our state-of-the-art, automated facility to deliver the highest levels of quality, durability and reliability. The battery pairs seamlessly with the truck, requiring no additional displays, connection ports, power buttons or other complications. Simply buckle up, turn the key, release the parking brake and go.

Advanced Electrical System
Big Joe AC controller technology delivers high performance efficiently while significantly reducing maintenance costs and extending the vehicle’s service life. The battery management system continuously monitors performance during operation and charging to optimize the battery’s service life.

A Drivetrain for High Productivity and Low Operating Cost
The AC drive motor delivers fine inching control when precision matters, while also delivering high torque and smooth acceleration when it’s time to get moving. Regenerative motor braking helps to reclaim energy, increasing run time and improving efficiency. Operators can appreciate the performance and lack of engine noise. Business owners can appreciate the lack of fuel costs and not needing to worry about unexpected—and expensive—engine breakdowns.

Big Joe Forklifts LPE80-100 4

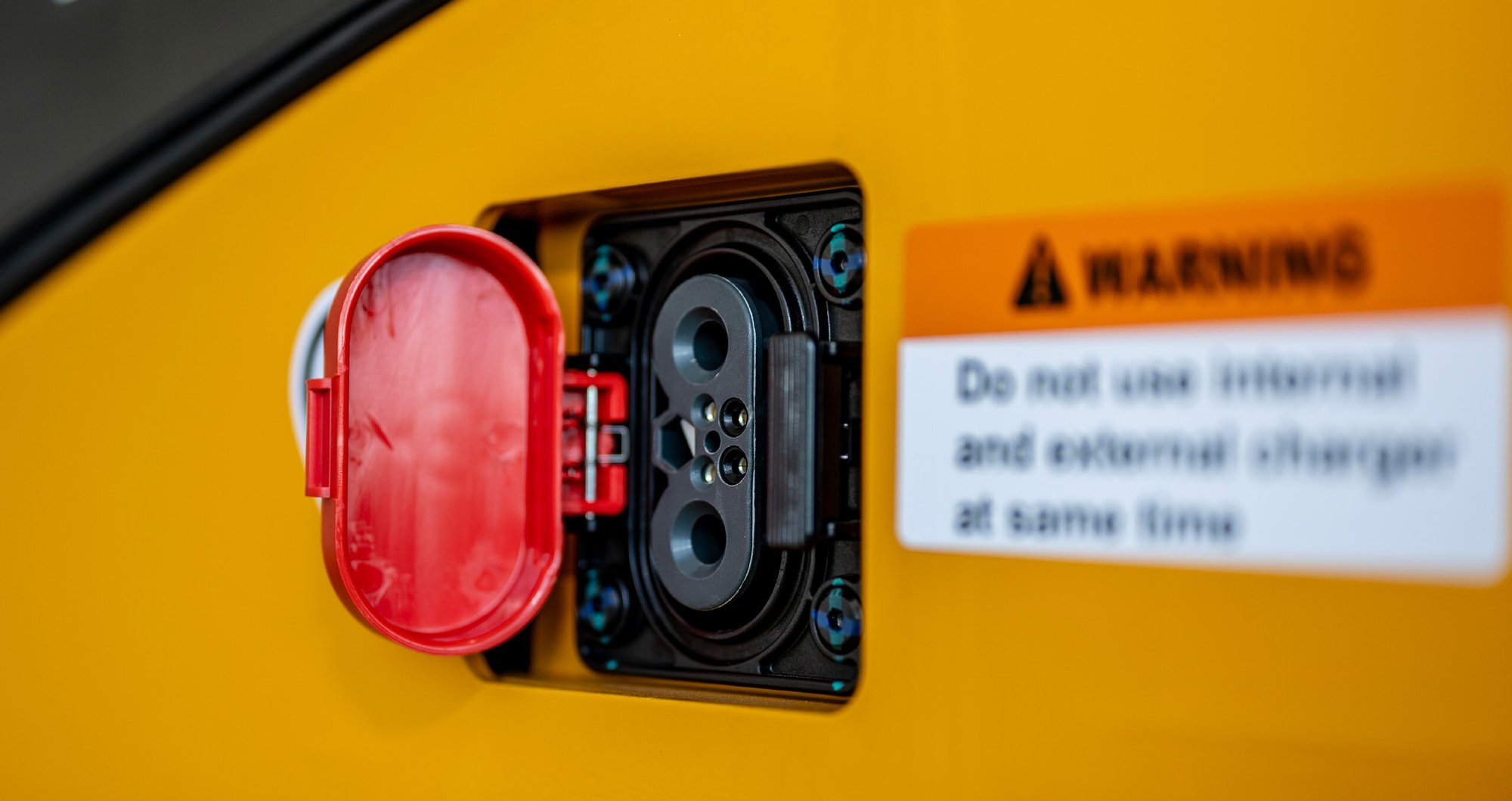

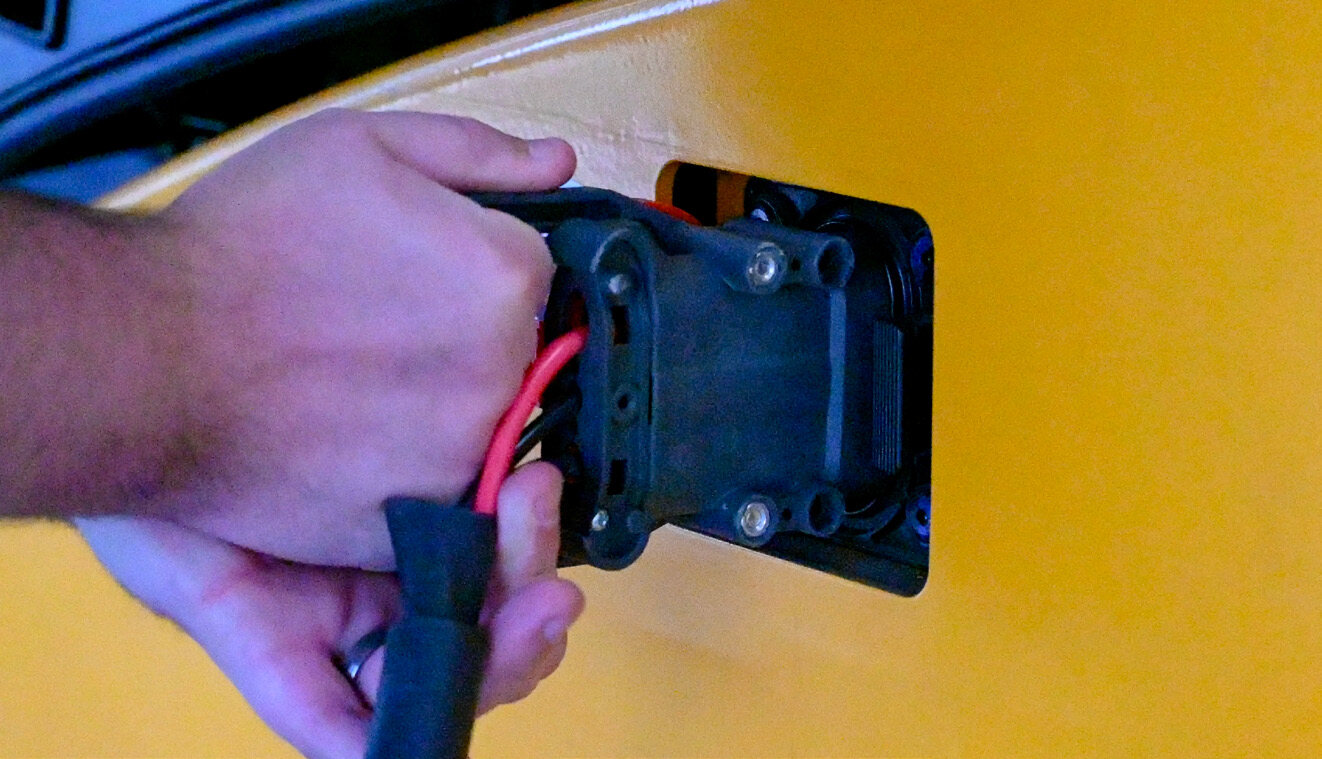

Charging Made Easy
Every LPE80-100 forklift comes standard with an onboard charger that plugs into a typical single-phase 120V or 240V wall outlet, allowing you to recharge almost anywhere. For operations that require faster charge rates, offboard chargers that conveniently connect to the truck’s integrated charge port are available.

Big Joe Forklifts LPE80-100 5

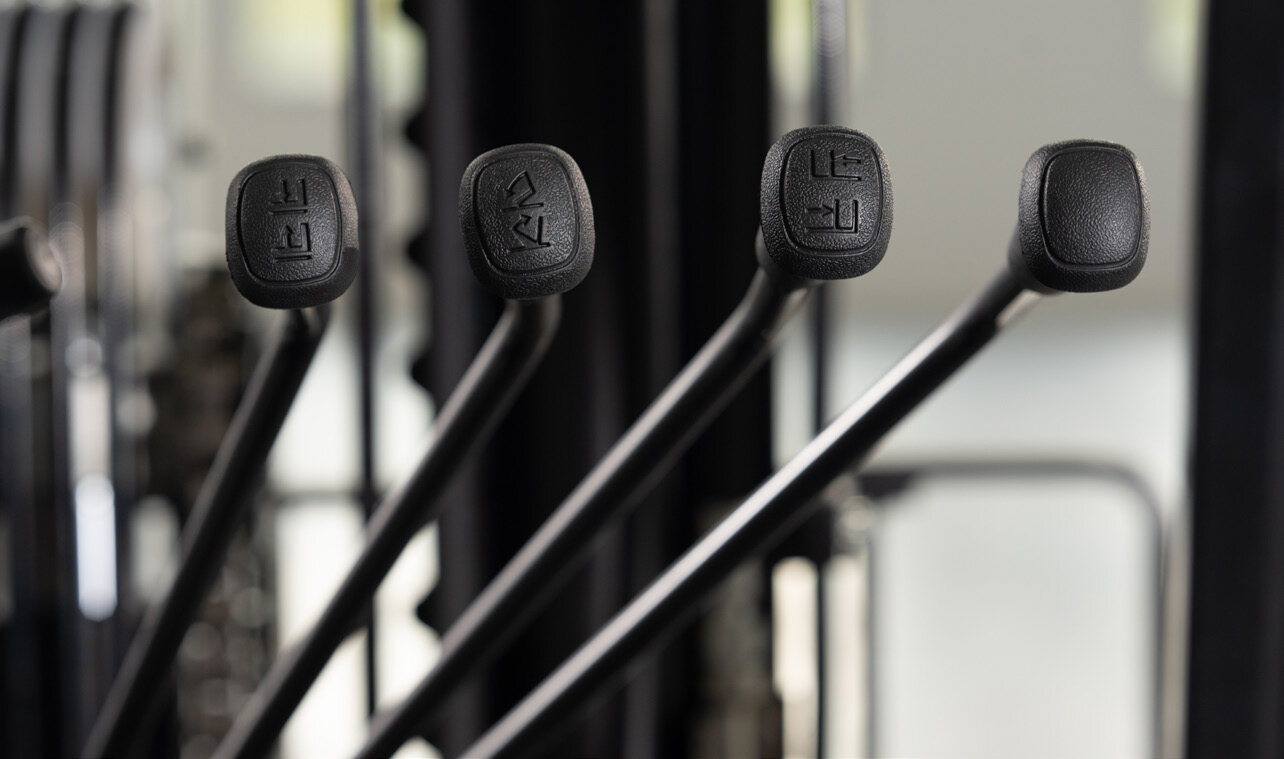

Smooth and Efficient Hydraulic Controls
Ergonomic controls are within easy reach of the operator and allow for smooth, precise load control. Energy efficiency is optimized since the hydraulic pump only activates when flow is needed and utilizes proportional control.

Big Joe Forklifts LPE80-100 6

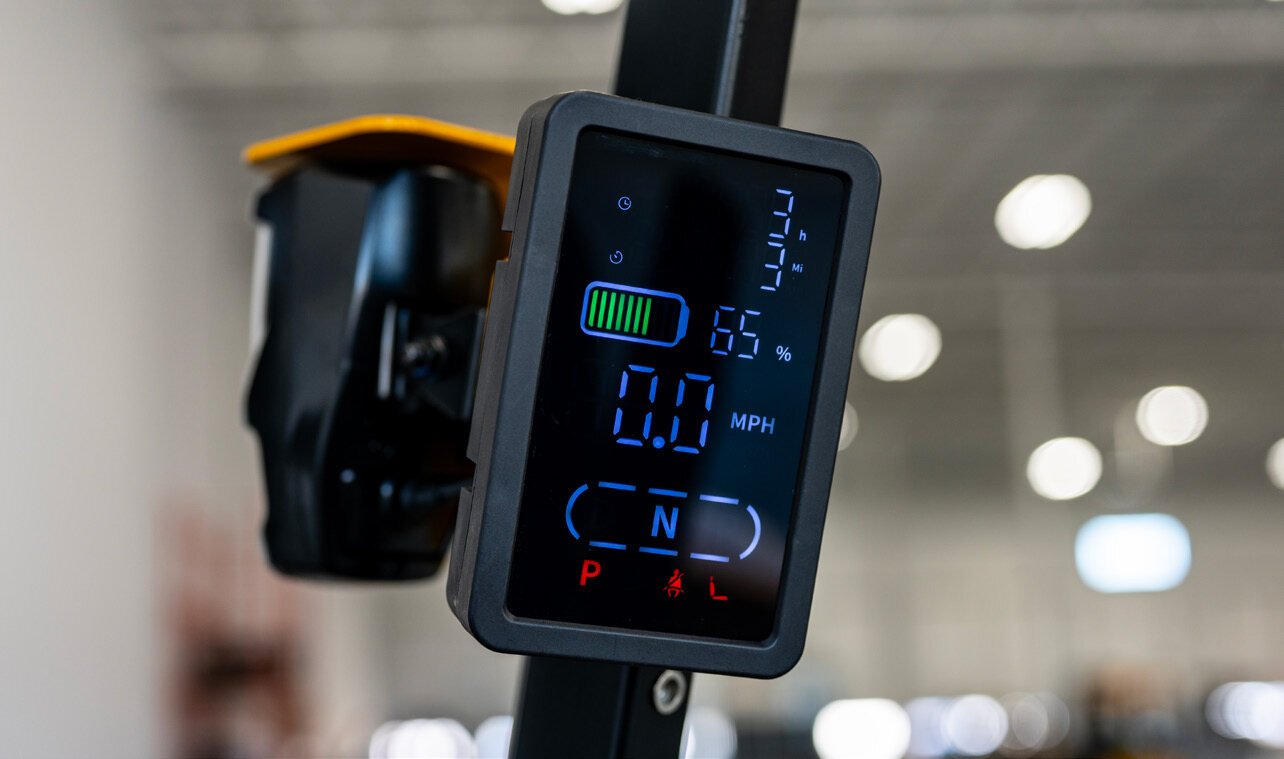

Remote Work Isn’t Just for the Office
LPE80-100 comes standard with a digital LCD display that enables wireless programming and diagnostics via Bluetooth or the standard telematics system that includes cloud-based maintenance monitoring, GPS tracking and related data services. When maintenance is required, features like a gas-spring assisted hood, removable floor plates and covers, and a design philosophy centered on simplicity help make the technician’s job easier.
