Revolutionize your operations with the next generation of power technology.

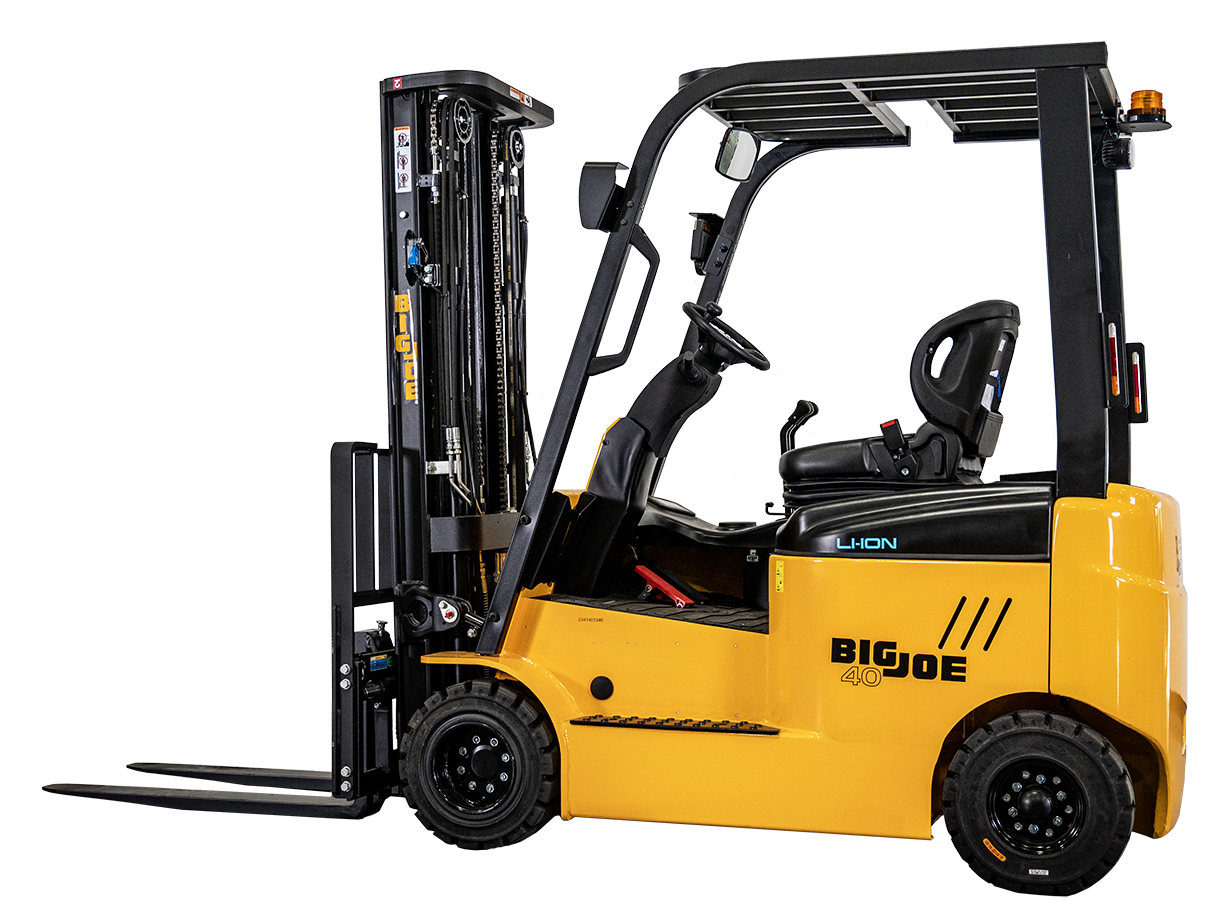

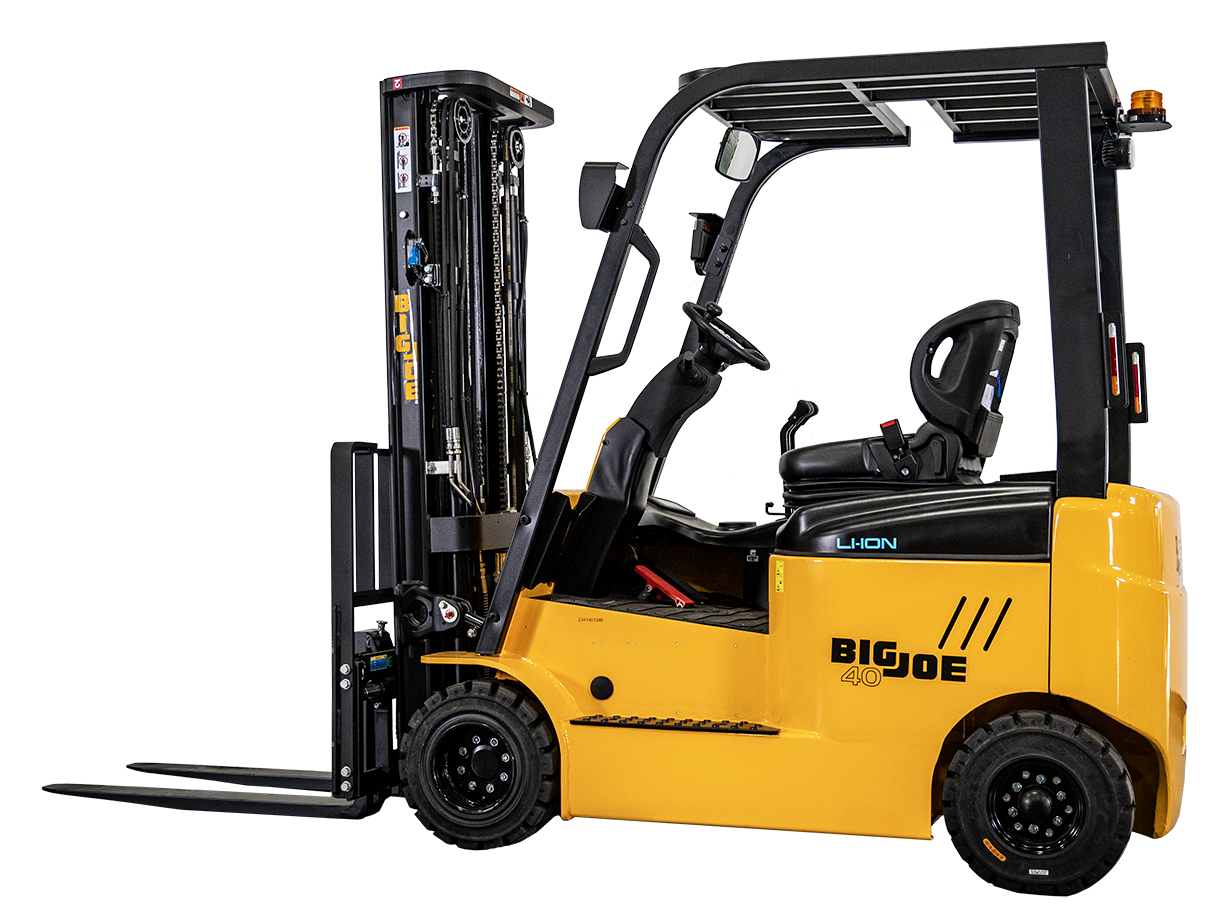

LXE40 Spark Lithium Forklift Truck

Material handling has entered a new era with the arrival of the Big Joe LXE Spark lithium forklift truck. With fast charge times, clean power and low-cost operation, the Spark is poised to make internal combustion trucks a thing of the past and revolutionize operations across a broad number of industries. The new LXE Spark was designed from the ground up to be a purpose-built lithium forklift and features a fully integrated power source that can run virtually non-stop in most operations, while offering a larger more comfortable operators compartment than a traditional electric forklift truck.


The LXE40 Spark Lithium Forklift Truck Features:

• Clean power

• Low-cost operation

• 4 - 4.5 hours continuous runtime

• Opportunity charge at rate of 1% every 80 seconds with a 3 phase charger

• Larger, more comfortable operators compartment than a traditional electric forklift truck

• Sideshift functionality for added productivity

• Solid pneumatic tires and weather resistant key components

• Reverse travel grab handle with horn

The LXE40 Spark Lithium Forklift Truck Specifications:

• Vehicle Type

Lithium Forklift Truck

• Capacity

4,000lbs. @ 24” load center to 130" 2,500lbs to 189"/197"

• Power

UL recognized 48v 360 AH Li-ion battery

• Max Lift Height

189" to 197"

• Collapsed Height

84.4" to 87"

• Fork Dimensions

42" Standard

• Vehicle Dimensions

See specification sheet

• Turning Radius

See specification sheet

• Travel Speed

See specification sheet

• Battery Compartment

See specification sheet

• Battery Capacity

See specification sheet

• Charger

External recommended
