Choose the Joey Zero to eliminate ladders and improve productivity

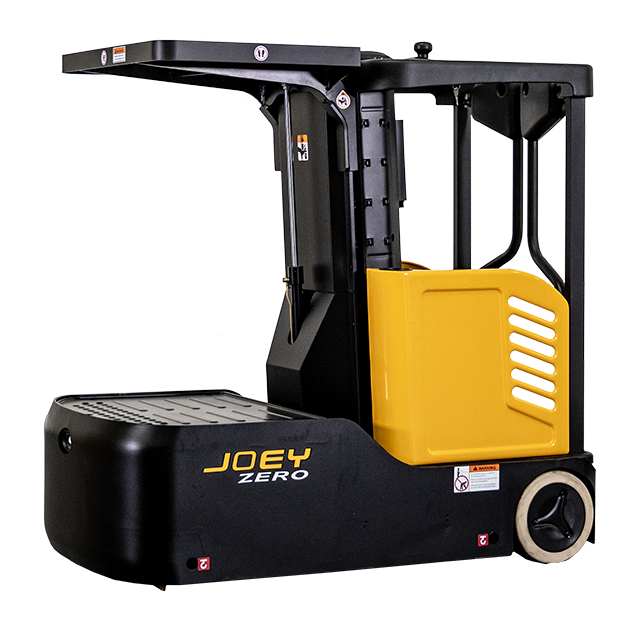

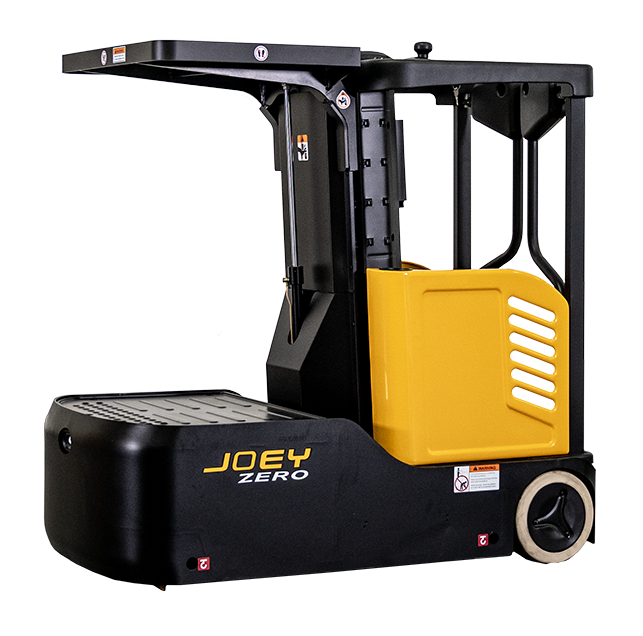

Joey Zero

Electric Access Vehicle

The Joey Zero Electric Access Vehicle, model J0-118 - is a compact and flexible solution for those looking to replace ladders and improve productivity in warehouse, retail and other industrial and commercial operations.  The Zero can help workers do a wide range of elevated tasks more safely including those found in order picking, shelf stocking, inventory management, maintenance, and assembly.

With a maximum operator platform height of 118” and a total vehicle capacity of 750lbs (200lbs front load tray, 250lbs front load deck, 300lbs operator’s compartment), the Zero packs a great deal of capability into a modest 57” x 29.5” vehicle footprint.  Ergonomic and logically orientated controls provide for intuitive and accurate operation, while a permanent magnet drive motor and on-board AGM batteries deliver up to 4 hours of continuous operation on a single charge.

Standard features include a powered front load tray, electronic power steering, forward projecting blue light and integral 110v smart charger.

US patents pending

The Joey Zero Features:

• Automatic locking rear entry gate when elevated

• 200lb capacity POWERED LOAD TRAY

• 750lb total capacity

• 118” maximum lift height

• Electronic Power Steering

• Field proven permanent magnet DC drive motor

• Obstruction presence sensors below operator compartment

• Integral batteries and charger

The Joey Zero Specifications:

• Vehicle TypeElectric Access Vehicle
• Maximum Capacity750lbs. (300 operator /  200 front load tray / 250 front load deck)
• Power24V infinitely variable travel controller
• Max. Lift HeightOperator platform raises to 118”
• Collapsed Height54"
• Vehicle DimensionsConsult specification page
• Battery Capacity(2) 12V 120AH AGM maintenance free batteries
• Charger110 VAC plug-in smart charger

Videos and Case Studies:



Big Joe JOEY ZERO Electric Access Vehicle from Bill Pedriana on Vimeo.
